The Spin Echo NMR flow meter is a modular metrology system designed for long term measurement integrity in wet gas and multiphase environments.
Metrology Architecture
Modular Hardware Design.
Optimized Flow Path
Full bore measurement volume.

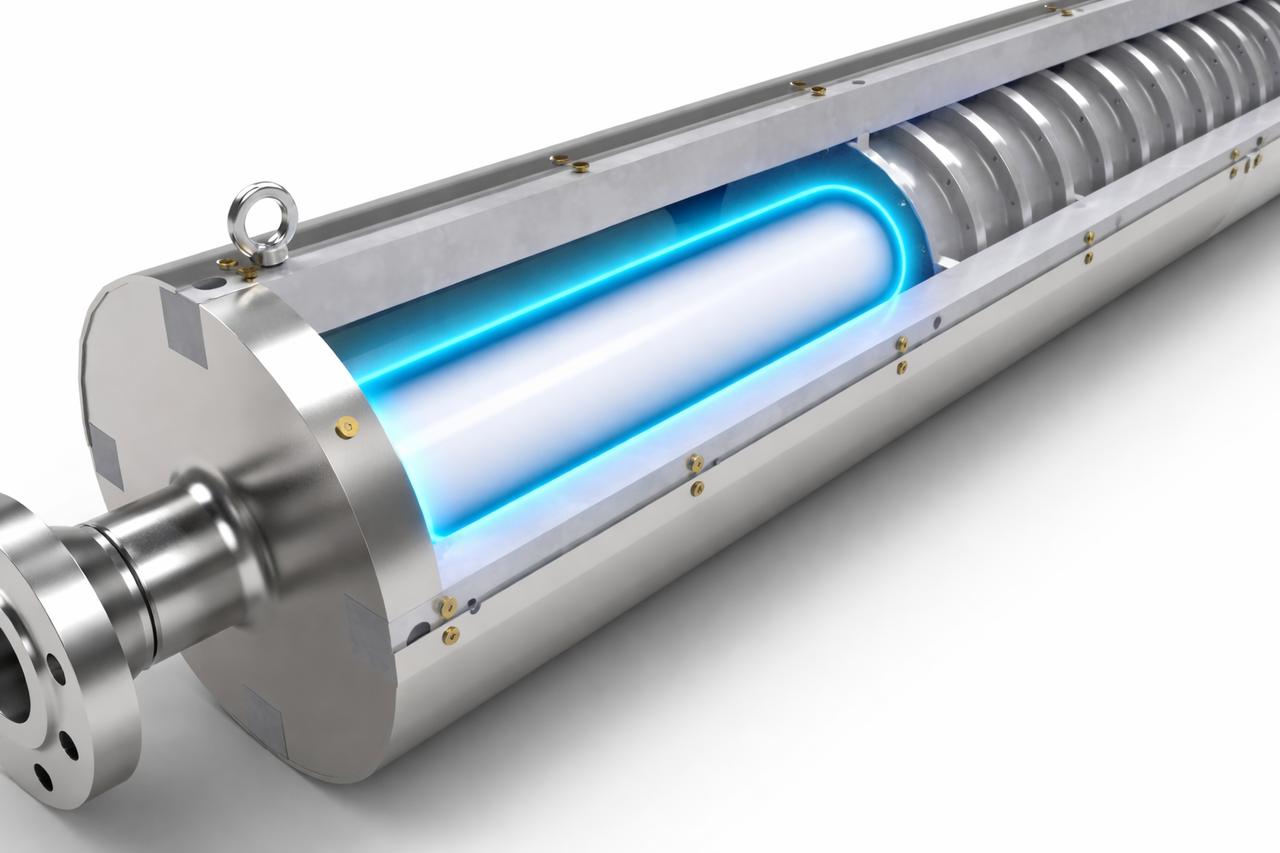

Spin Echo utilizes a standard type approved polymer flow tube with zero internal intrusions. Designed for inline operation, bypass configurations are preferred to enable calibration and maintenance without production impact.
Reduced flow assurance risk and simplified integrity management.
Non Intrusive Sensing Probes
Molecular sensing without process disturbance.

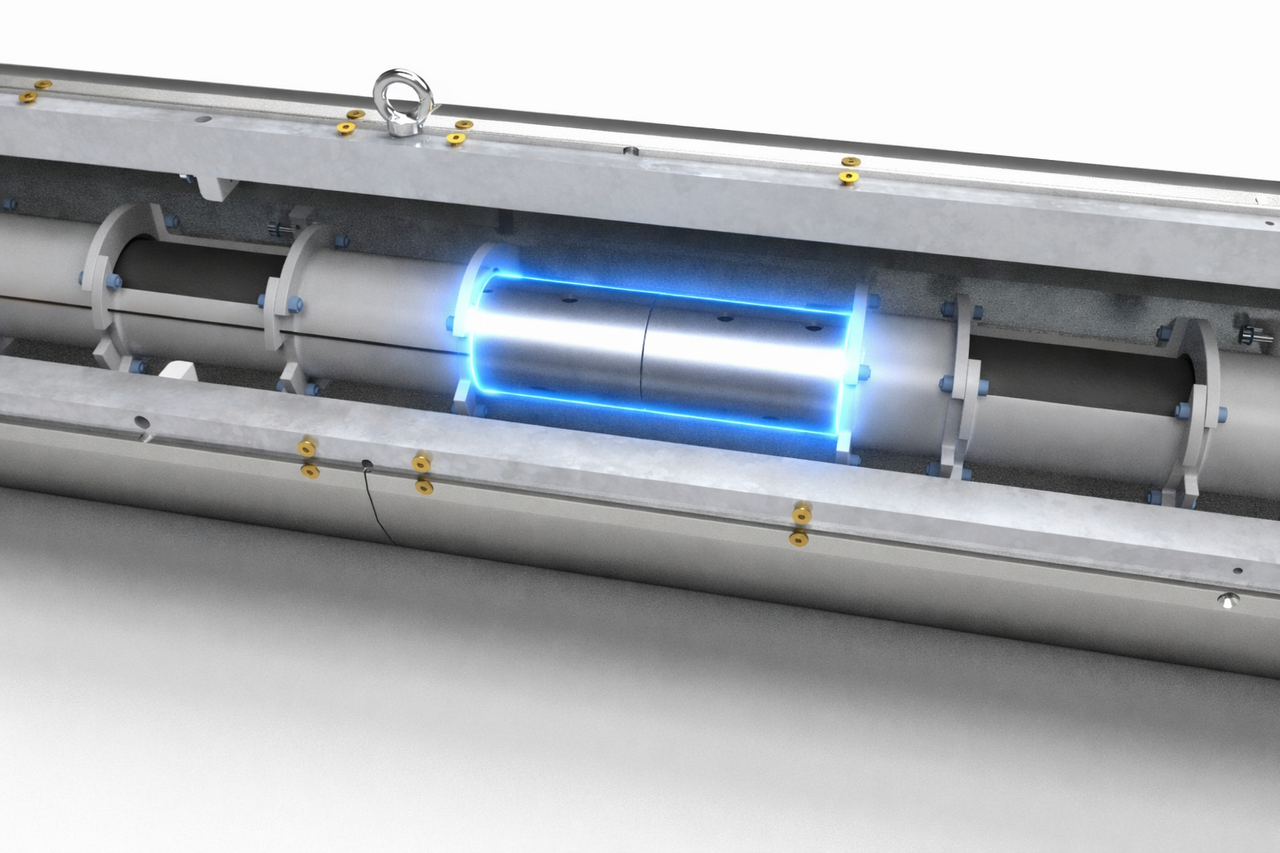

Probes are positioned externally to the flow bore. This modular architecture allows the system to be configured for wet gas or multiphase applications without the need for continuous sampling.
High fidelity phase characterisation without separation infrastructure.
Static Magnet Assembly
Field stability achieved through fixed geometry.
A second generation magnetic architecture providing a uniform field without mechanical alignment. The system is inherently resistant to vibration and thermal cycling.
Long term measurement stability with no routine recalibration.
Integrated Edge Processing
High speed signal quantification at the wellhead.
Integrated electronics perform high frequency signal acquisition and phase resolved analysis. Data is processed locally before being transmitted to the enterprise control system.
Live operational insight with high availability in the energy sector.
Operational Capability
Engineered for measurement integrity.
Physics Based Sensing
Direct molecular measurement replaces empirical models and inferred correlations. Integrity is derived from NMR resonance signatures rather than pressure or temperature estimates.
Eliminate costly financial errors from over or under estimation.
Metrology Data
Technical Specification
Detailed Metrology Matrices
Performance data across specific flow regimes including measurement uncertainty for wet gas and multiphase environments is shared under NDA following technical consultation.
Technical Evolution
Evolution beyond first
generation NMR architectures.
Spin Echo builds on the established physics of NMR while reflecting lessons learned from first generation field deployments. Our architecture eliminates the mechanical and calibration dependencies that historically constrained long term performance.
